With its sleek design, powerful processing and upgraded IPS display, this advanced 12″ chartplotter integrates seamlessly into your Garmin marine system.
Features:
- Easily integrates with more engines
- Connect to compatible thirty party devices with OneHelm digital switching
- Easily build your marine system using the best of network connectivity
- Navigate any waters with preloaded mapping and coastal charts
- Take the guesswork out of sailing with clear laylines and more, right on the screenManage your marine experience from nearly anywhere
- with Panoptix PS51 (sold separately) for FrontVu scanning sonar to help you see and avoid submerged obstacles in real time as you approach with a 300 ft range
- new 12″ IPS displays offer improved sunlight readability
- Preloaded mapping with BlueCart g3 coastal charts and LakeVu g3 inland maps
- Connect and share information with compatible Garmin devices on your network
- Connect to NMEA 2000 and NMEA 0183 Networks
- ActiveCaptain App
- Integrated ANT Technology

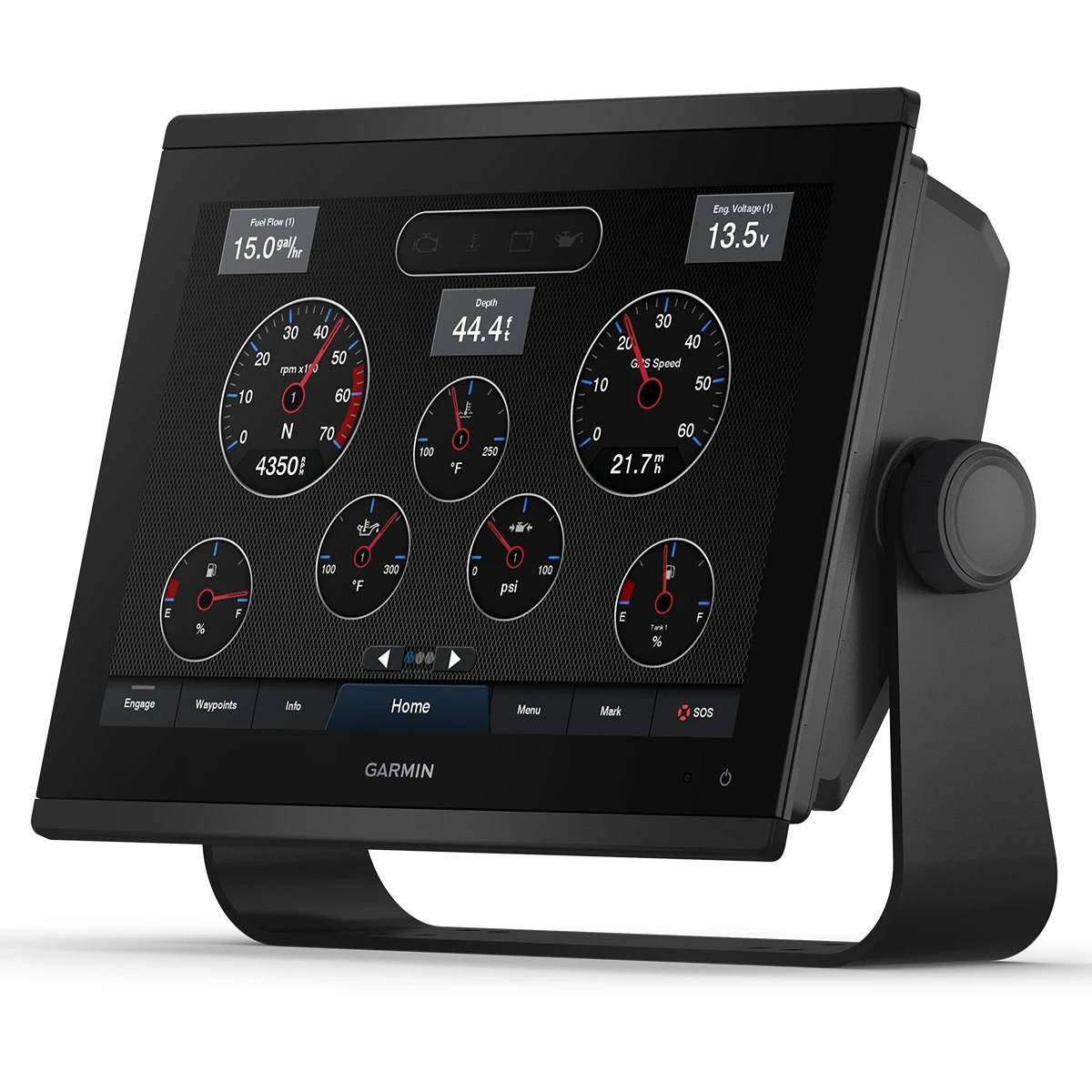

- Engine Connectivity
- OneHelm Feature
- Dimensions: 12.1″ x 8.9″ x 3.2″
- Display size: 10.3″ x 6.4″; 12.1″ diagonal
- Display resolution: 1280 x 800 pixels
- Display type: WXGA IPS display
- Weight: 6.6 lb
- Water rating: IPX7
- Mounting options: Ball or flush
- Preloaded maps: BlueChart g3 coastal maps and LakeVu g3 inland maps
- Accepts 2 microSD cards
- Logs 5000 waypoints
- Track log: 50,000 points, 50 saved tracks
- Saves 100 routes
- In the box:
- GPSMAP 1243 chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
