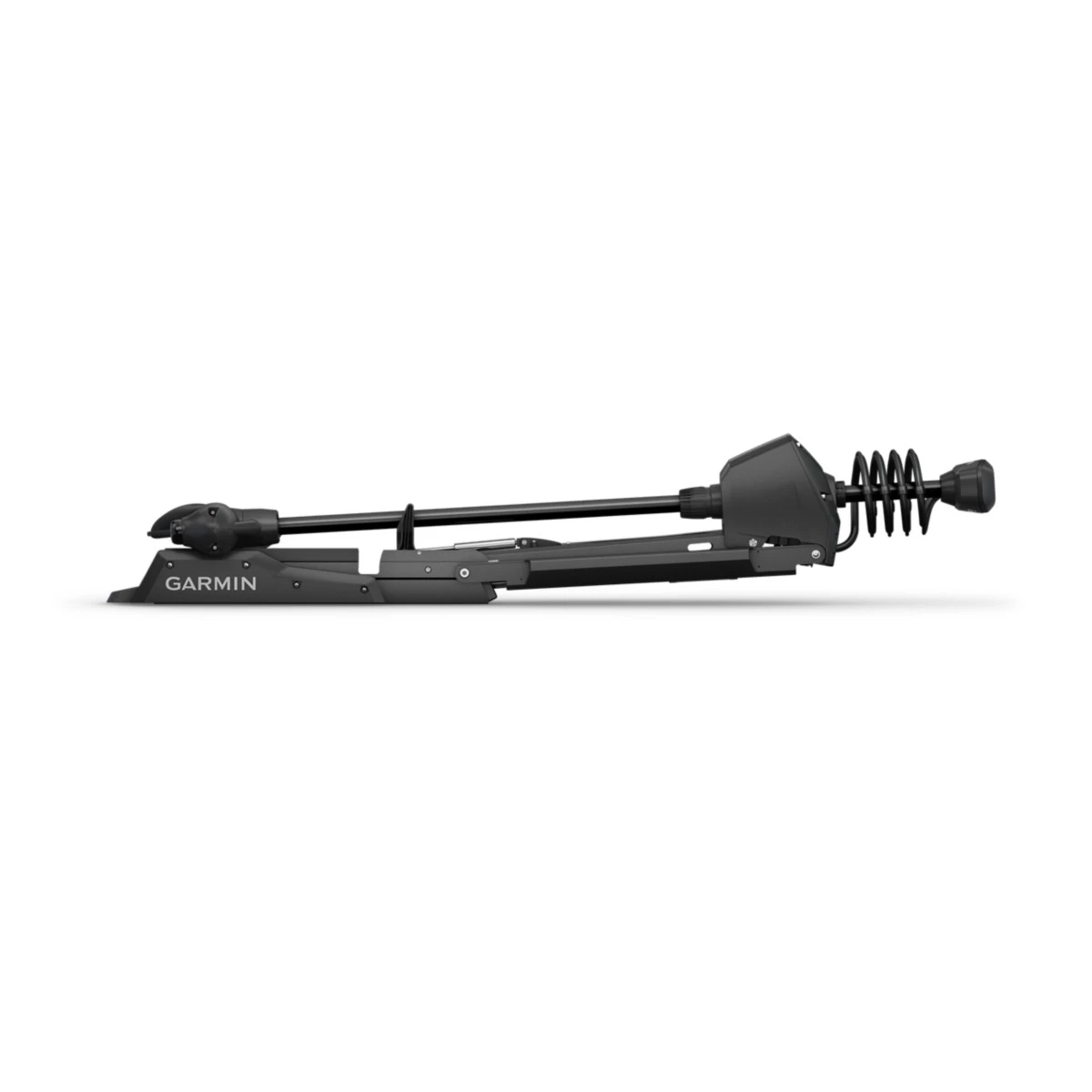

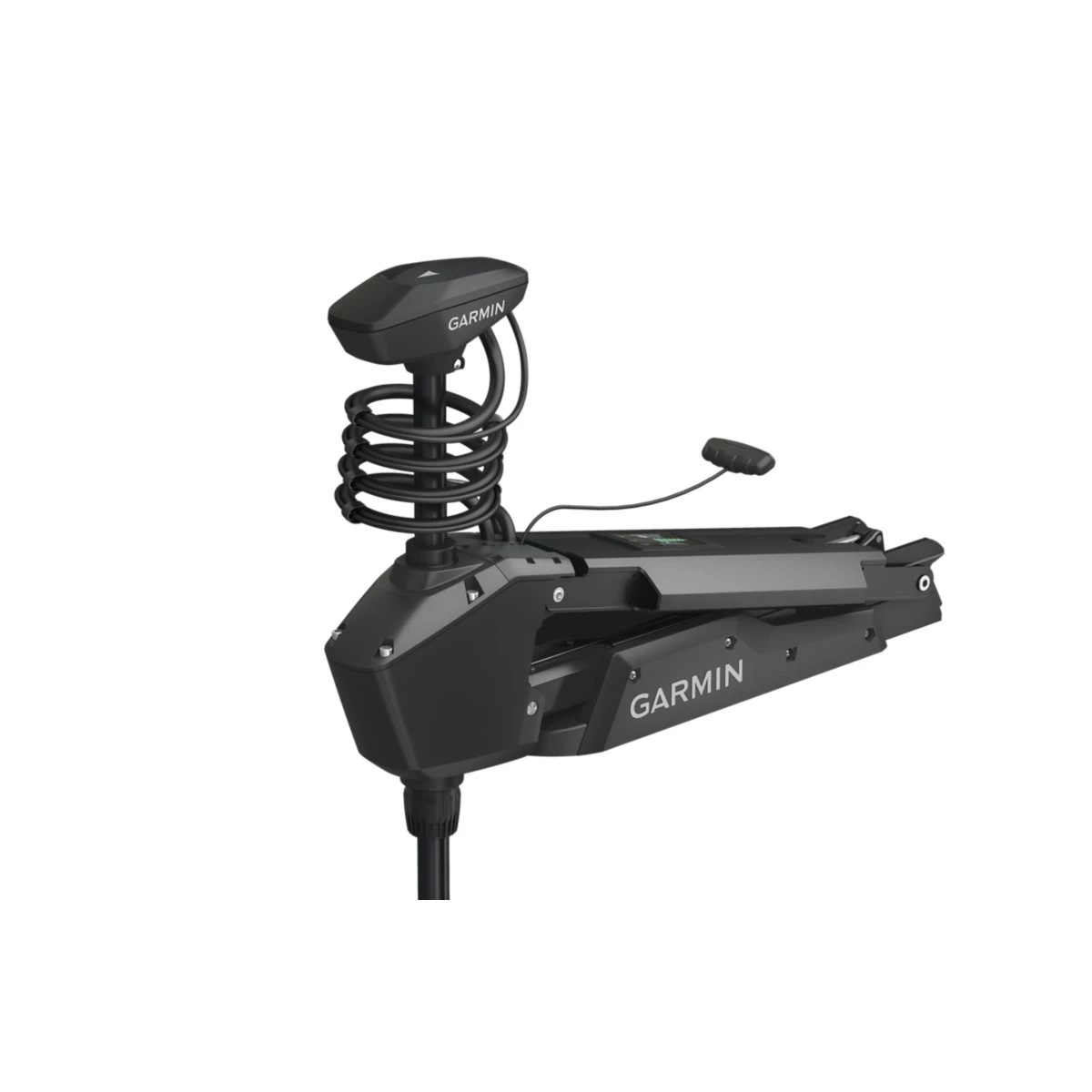

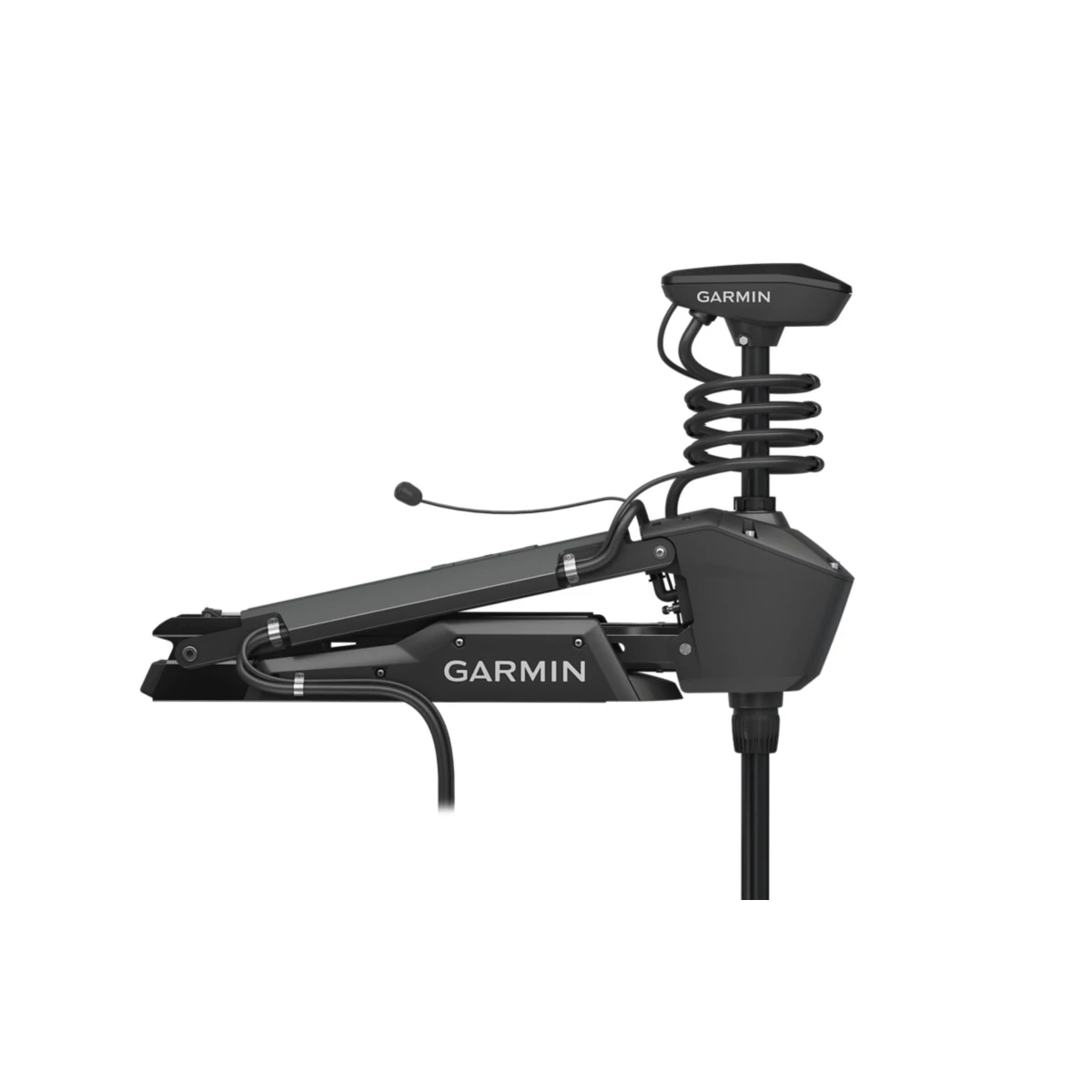

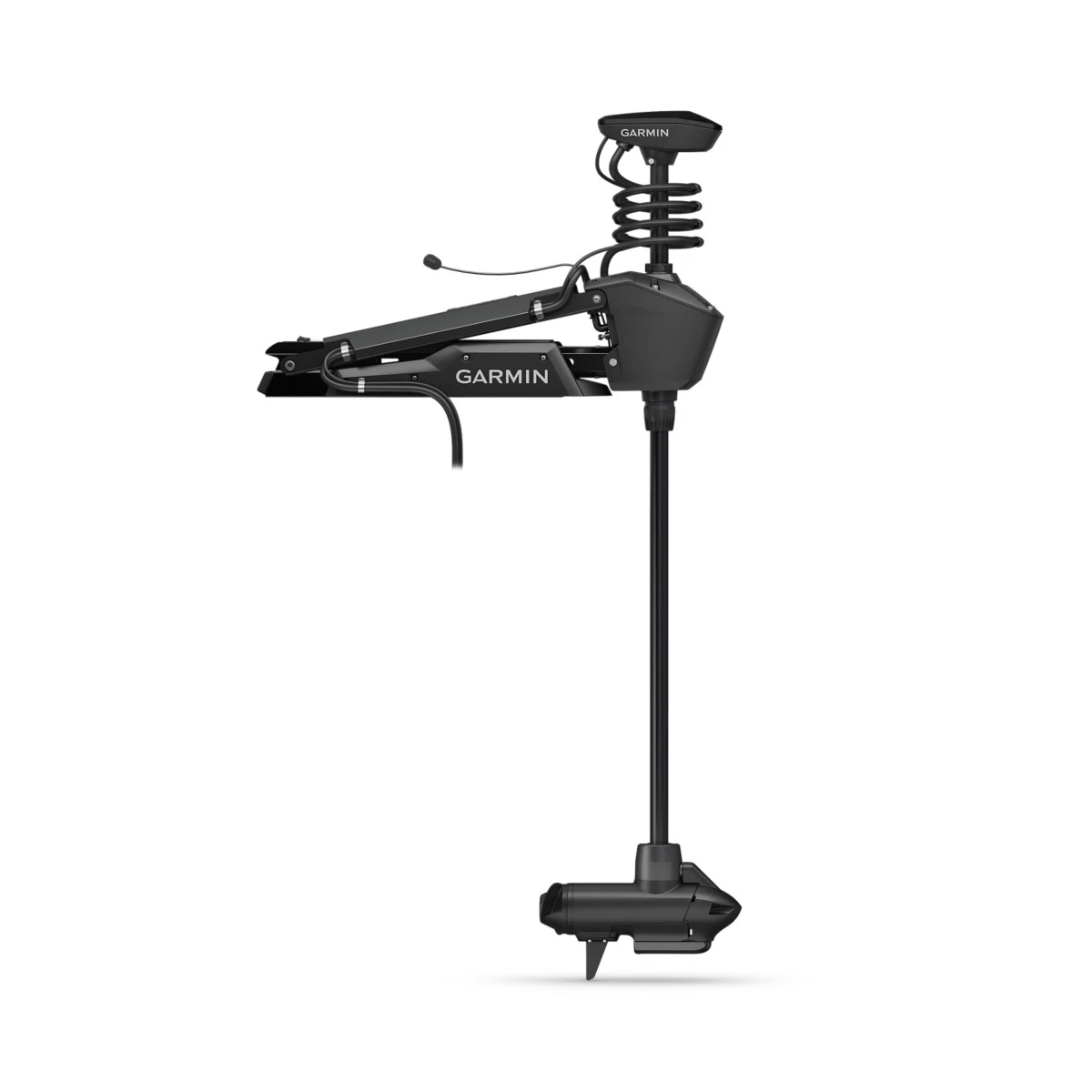

Garmin Force Trolling 57″ Motor

The Garmin Force Trolling Motor is one of the most powerful and efficient freshwater trolling motors available. This Garmin trolling motor uses Wireless chartplotter connectivity for navigation, autopilot, and anchor lock features. If you’re looking for a durable trolling motor that is power, efficient, and quiet, you can trust the Garmin Force Trolling Motor to provide what you need. Complete with a wireless foot pedal, convenient remote, and integrated sonar, this Garmin Force Trolling Motor will bring the best for your fishing season.

Features:

• Durable and easy to use
• Powerful, efficient, and quiet
• Wireless foot pedal provides instant control and responsiveness
• Wireless Chartplotter integration and built-in autopilot provide guidance
• Convenient Remote with point and go steering and user-programmable keys

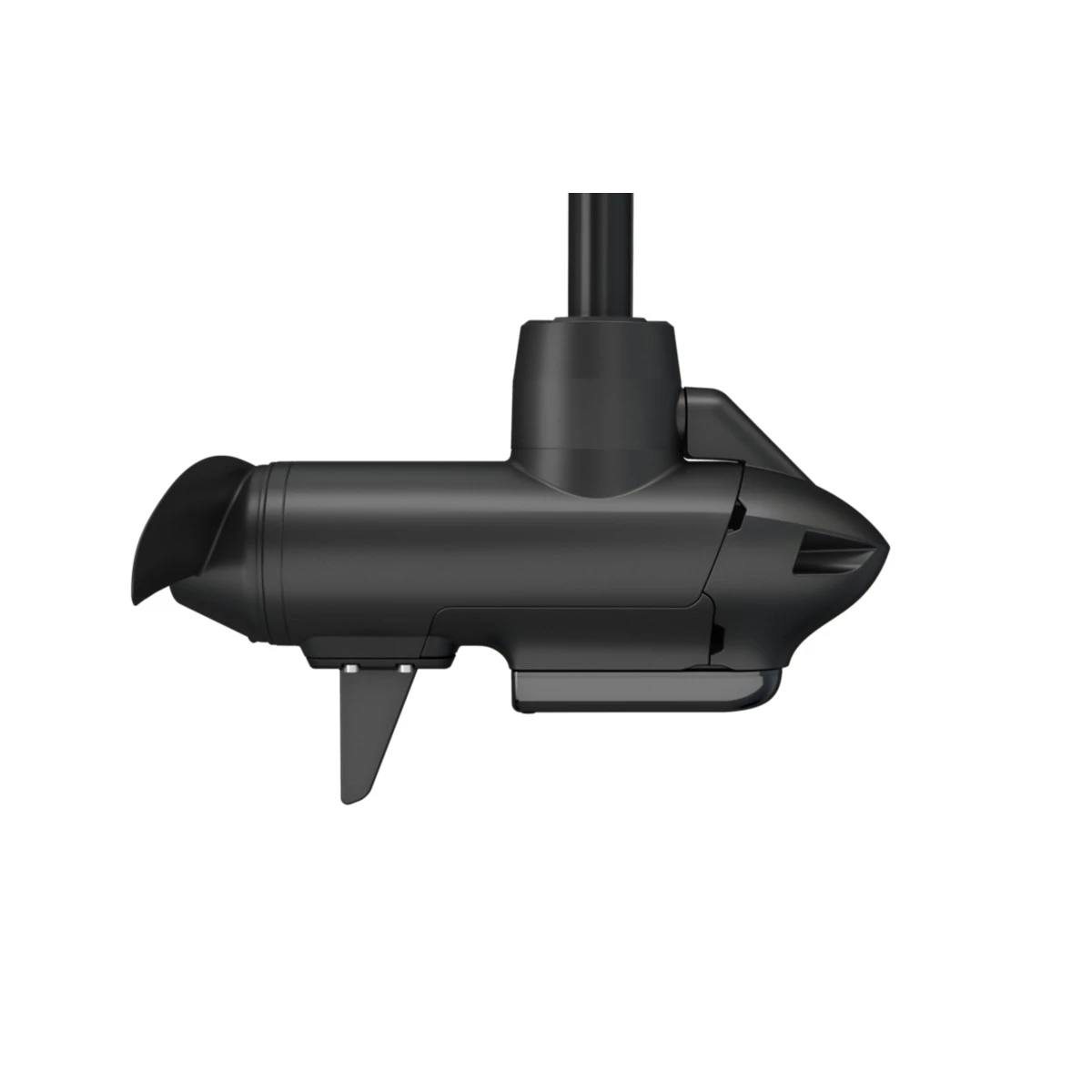

• Integrated transducer with CHIRP traditional and HD ClearVü and SideVü sonars

Specs:

• Electric steering

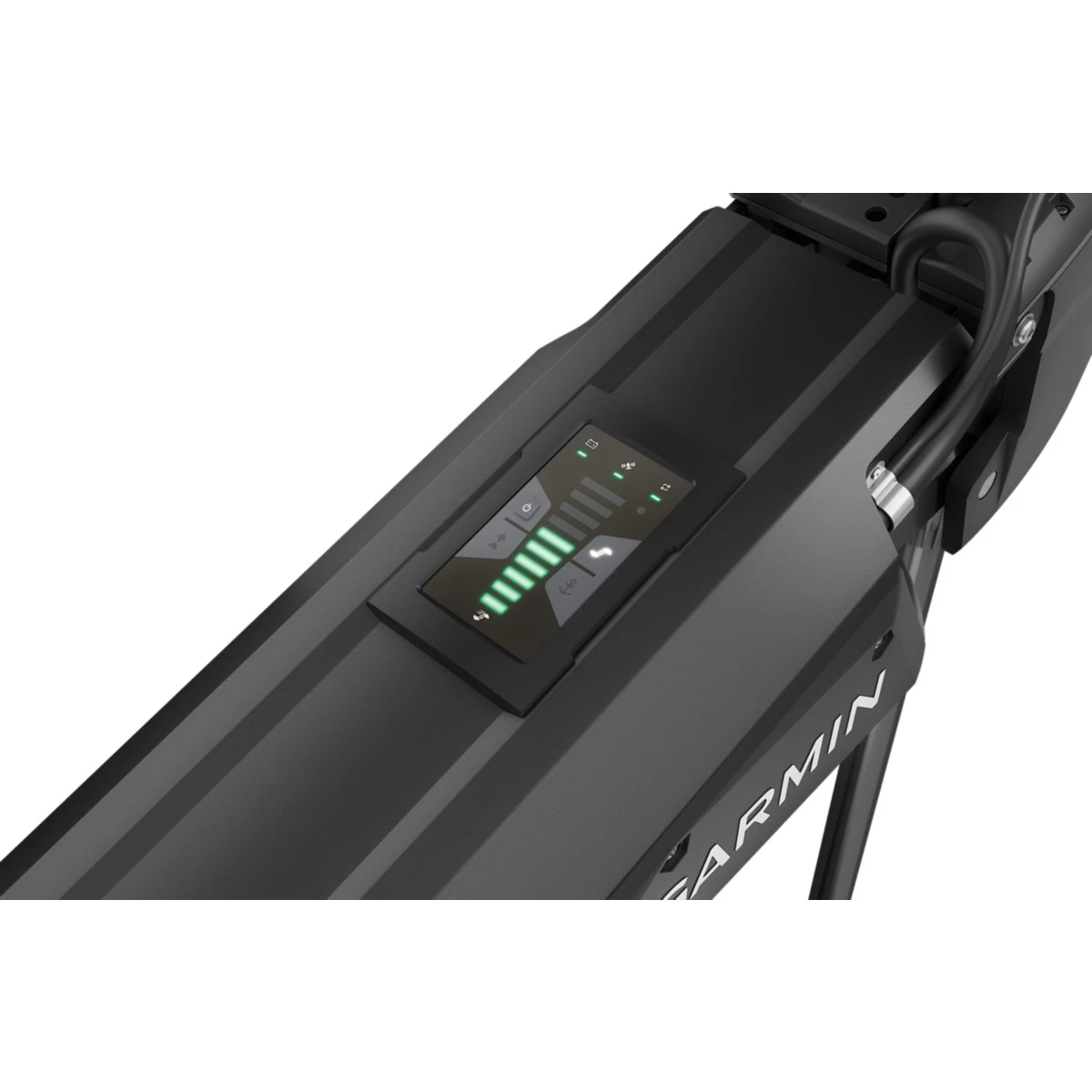

• Battery indicator
• Shaft length: 57 inch
• Voltage: 24 V or 36 V
• Built-in heading sensor
• Mounting location bow
• Lift-assist dual gas springs
• Mount style: scissor-style mount
• Variable speed control (20 steps)
• Built-in GPS (high-sensitivity GPS)
• Warranty: 3-year, limited lifetime on shaft
• Water rating (components above water): IPX7
• For use in freshwater; warranty also covers saltwater/brackish water use
• Max thrust: 100 lbs Per ISO 13342 using high-efficiency propeller at 36V; 80lbs per 13342 using high-efficiency propeller at 24 Vdc

Sonar

• Anchor lock
• Heading hold
• Cruise control
• Route following
• AutoPilot Features
• Transmit power: 350 W
• Depth and temperature displayed
• ClearVu: Ultra-high definition 800 kHz
• Number of pins: 12-pin (orange connector)
• Gesture features (manual+, heading hold+, jog+)
• SideVu: Ultra-high definition 1200 kHz and 455 kHz
• Frequencies supported CHIRP sonar: High-wide CHIRP (150-240 kHz)
• Partial frequencies supported CHIRP Sonar: High-wide CHIRP (150-240 kHz)
• Maximum depth
  • ClearVü: 200 ft.
  • CHIRP sonar: 800 ft.
  • 455 kHz SideVü: 500′ to each side; 1000′ total
  • Ultra-high-definition SideVü: 125′ to each side, 250 total at a max depth of 30′

Foot Pedal

• Waterproof rating IPX7
• Wireless communication
• AA battery life: 1 full season
• Adjustable pedal resistance
• Dimensions (LxWxH): 12 x 9 x 4.5 in.
• Power installation: 12V wired or battery-powered (2 AA)

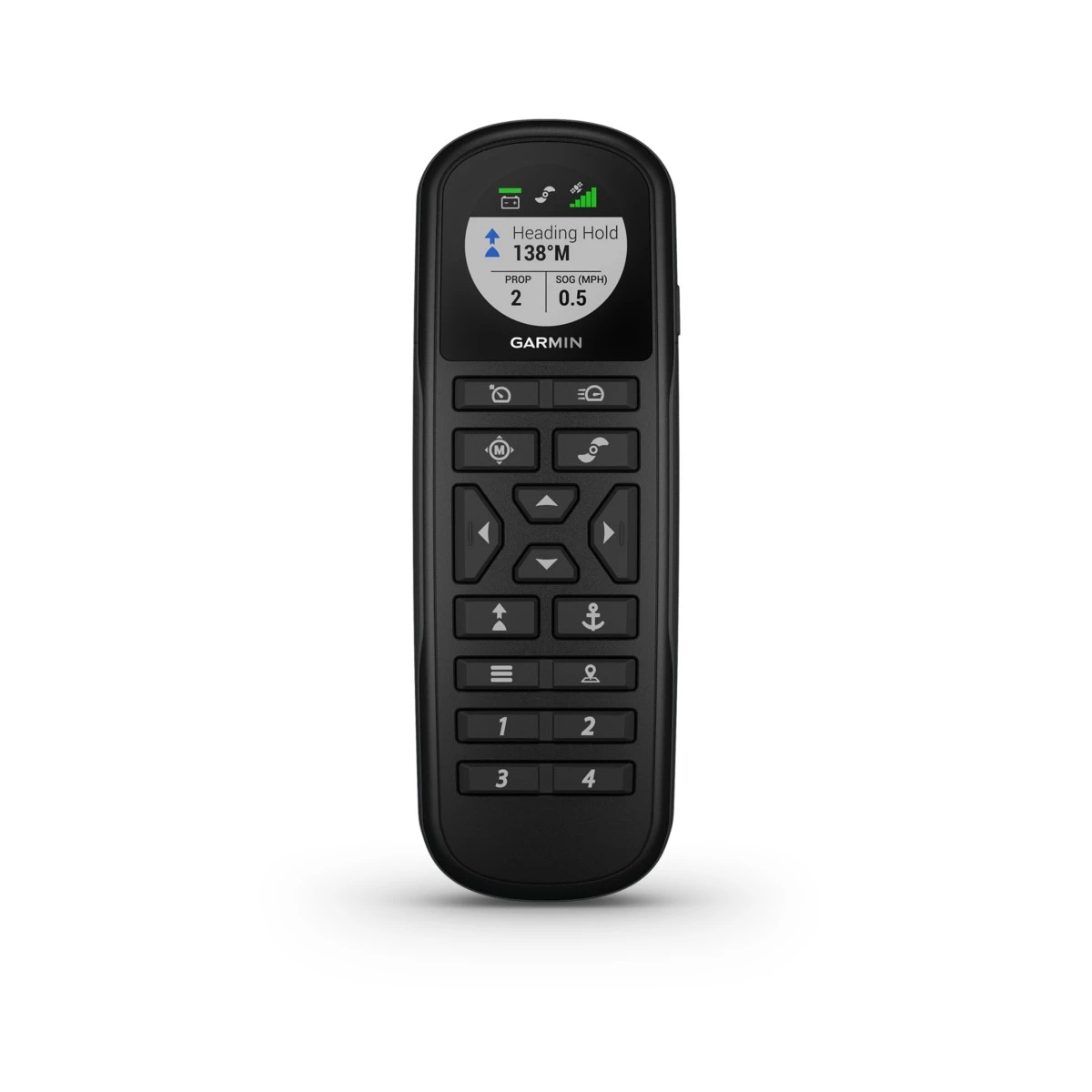

Remote

• Floats
• Water rating IPX7
• Autopilot feature control
• Display resolution: 240 x 240 pixels
• Chartplotter user-programmable keys
• Display size: 1.2 in. (30.4 mm) diameter
• Battery life: Typical use with backlight at low, 43.2 weeks
• Display Type: color, sunlight-visible, transflective memory-in-pixel (MIP)

In the box:

• Remote
• Stabilizer
• Foot Pedal
• Trolling Motor
• Documentation
• High-Efficiency Propeller
• Assembly and Mounting Hardware
