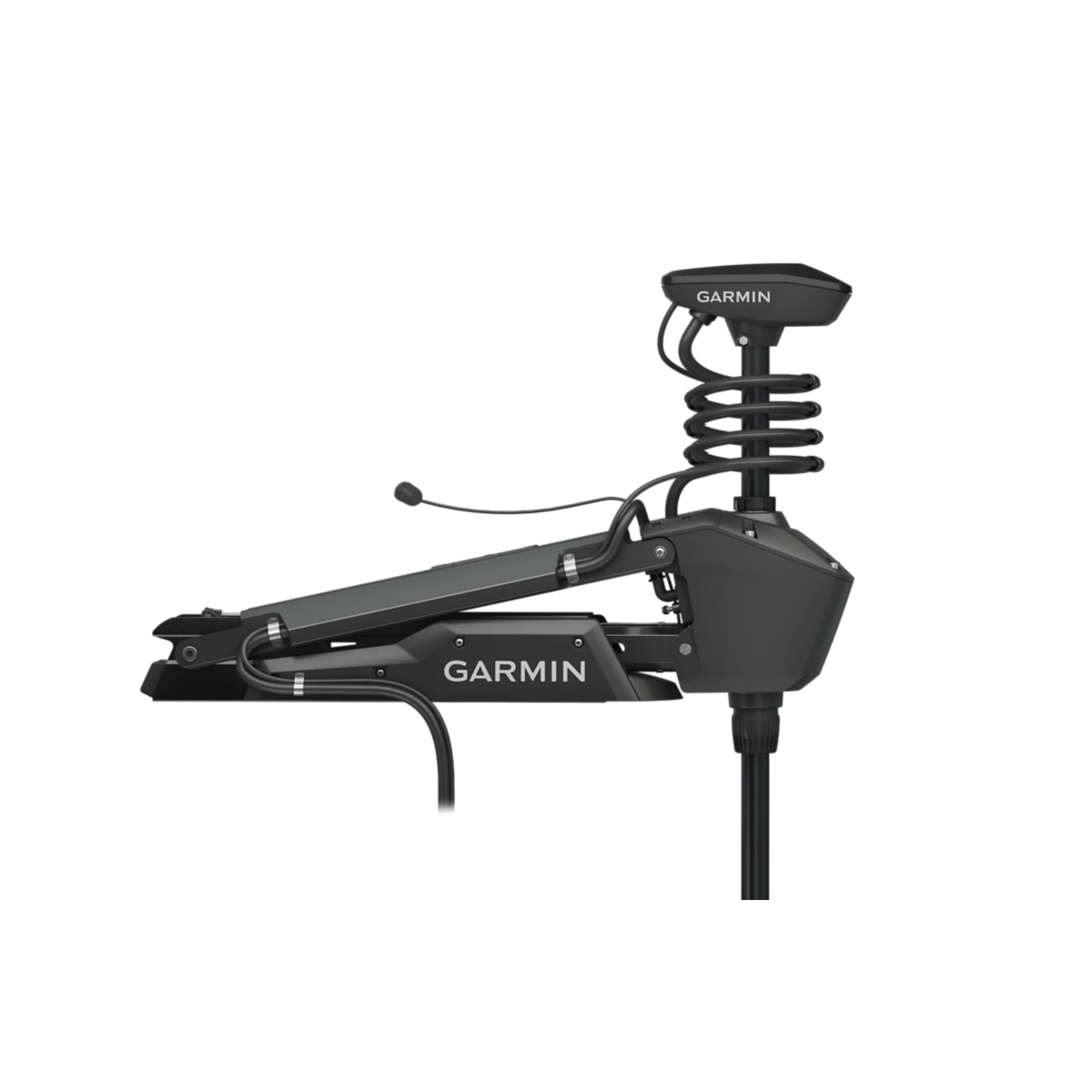

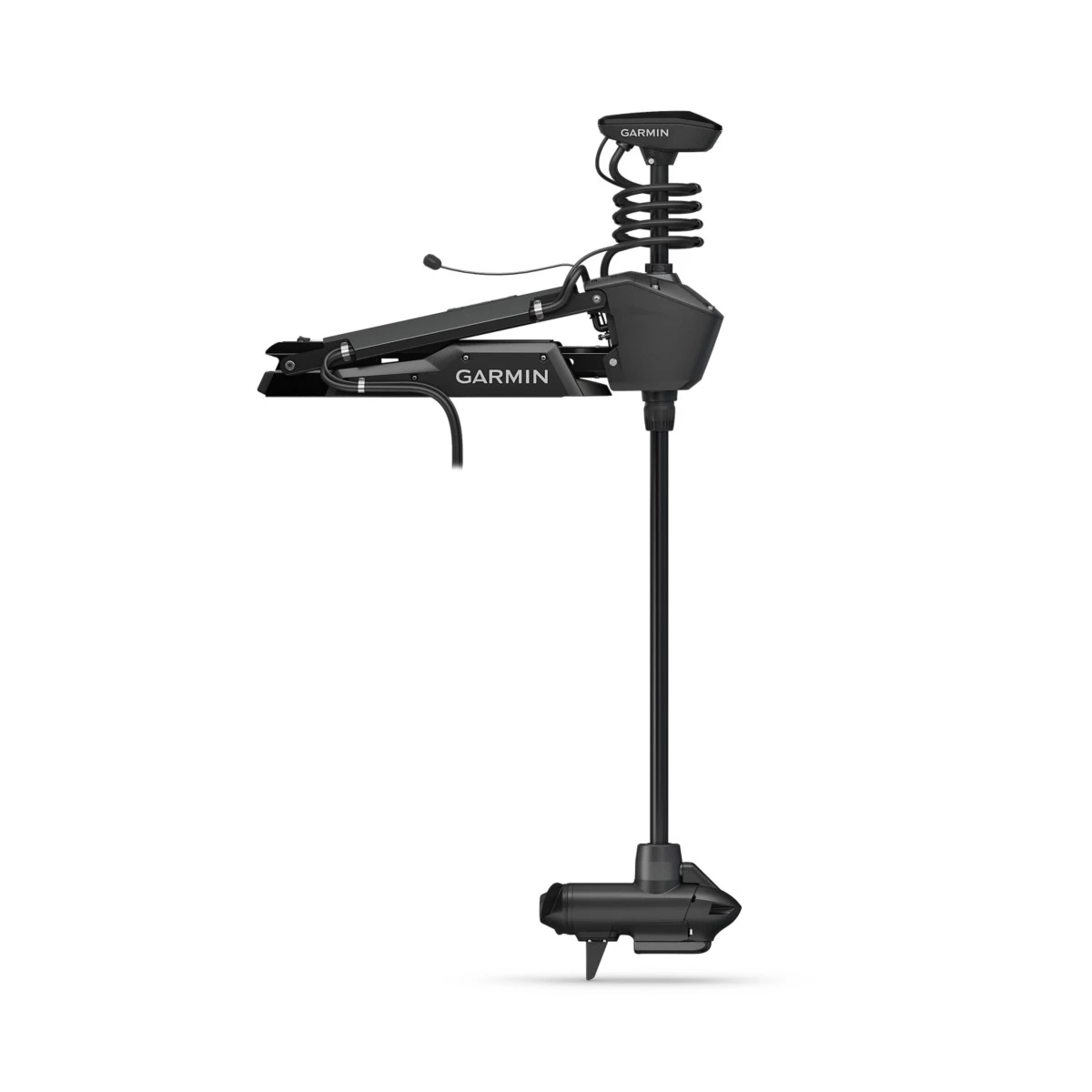

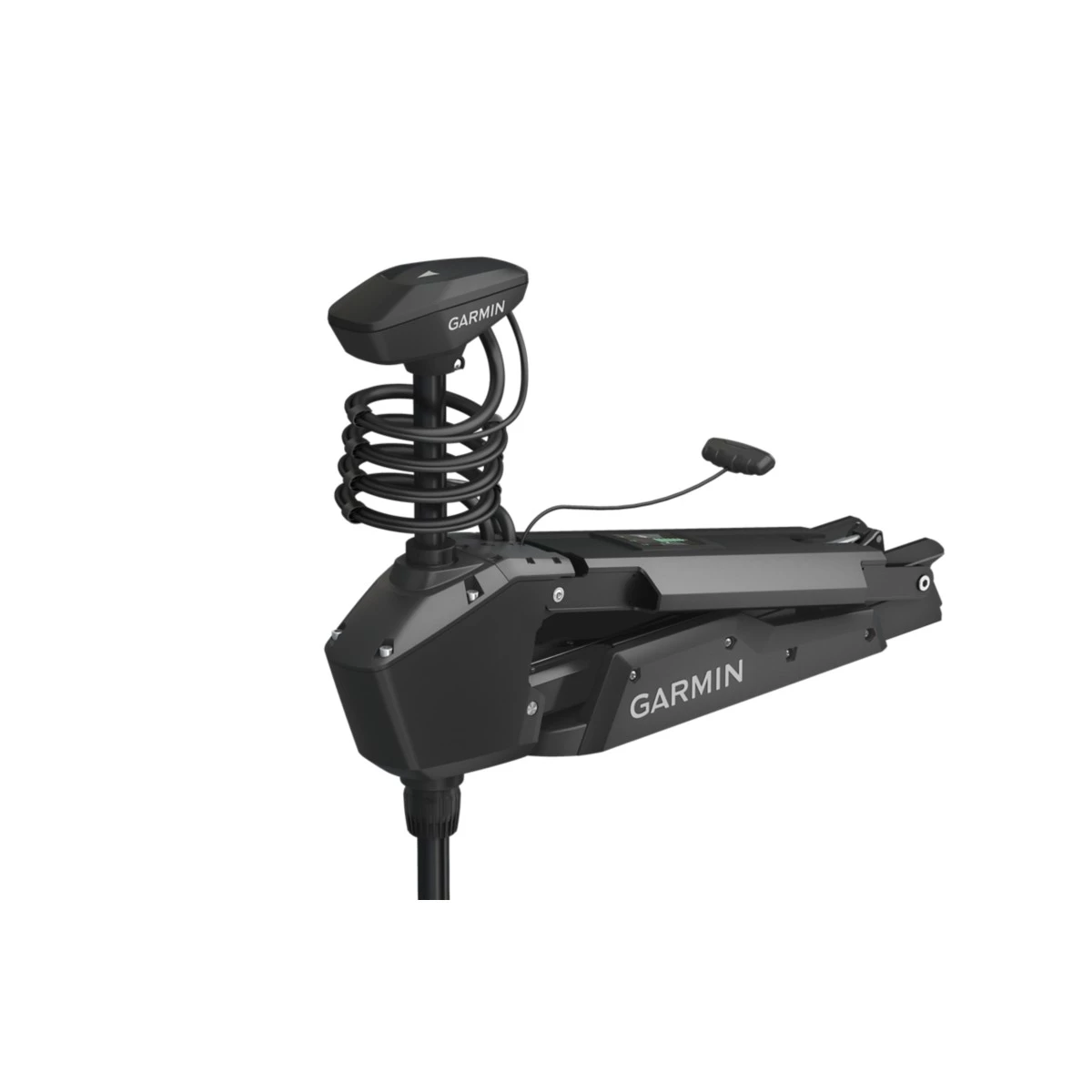

Garmin Force 50-Inch Trolling Motor

The Garmin Force Trolling Motor is the most powerful and efficient 50-inch trolling motor available. This Garmin trolling motor quickly deploys and easily retracts and stows thanks to dual gas springs. Integrated CHIRP, ClearVü, and SideVü scanning sonars provide a clear picture of the surrounding waters, while built-in GPS, auto-pilot functionality, and a heading sensor allow you to easily mark and move between your favorite spots and waypoints. The Garmin Force 50-inch motor includes a foot pedal and wireless remote for easy, quick control and operates with electric steering. With a high-efficiency motor, the Garmin Force Trolling Motor delivers powerful thrust in a quiet motor with simple point-and-go steering.

Features:

• Electric steering for easier operation
• Built-in GPS, heading sensor, and auto-pilot

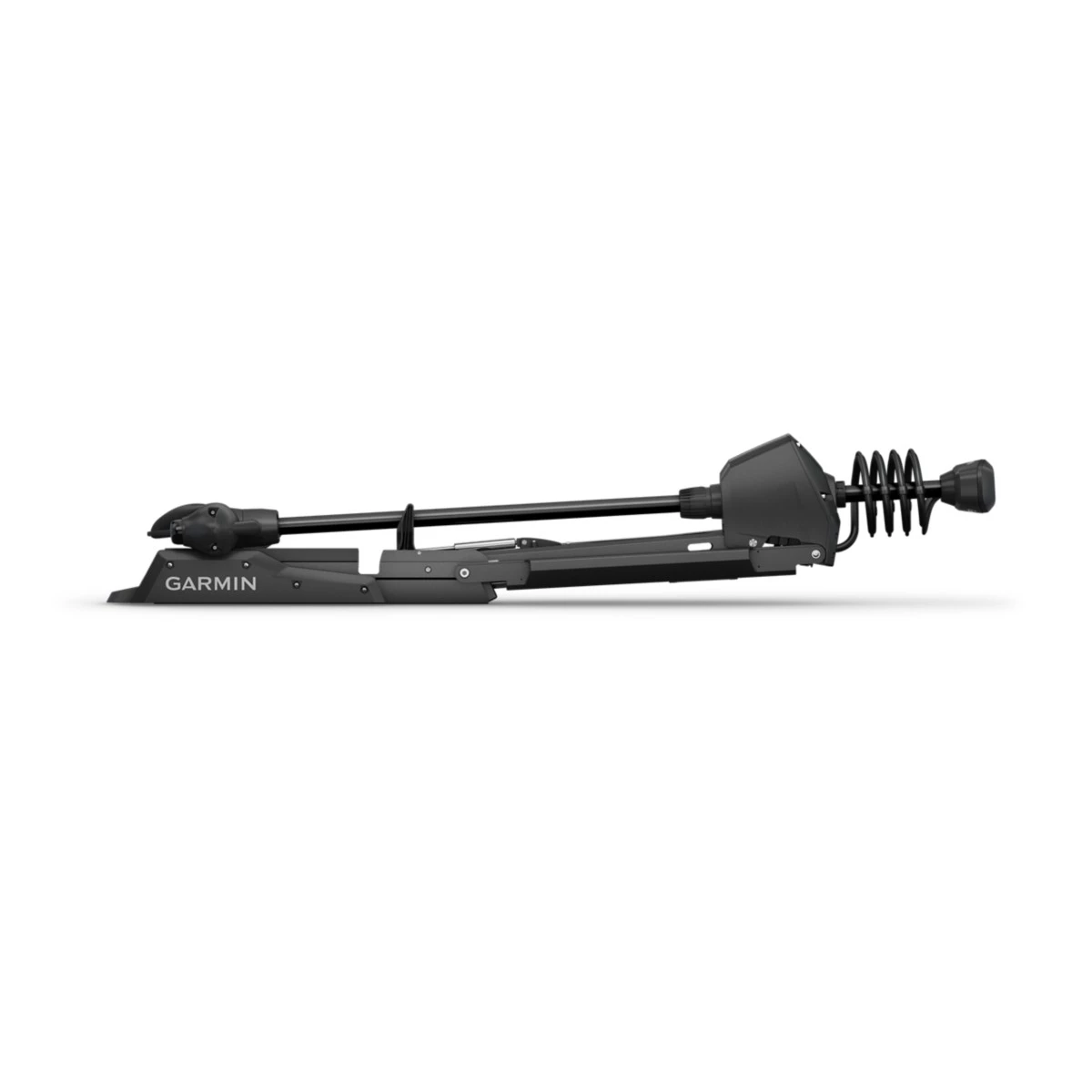

• Dual gas springs offer easy stowing and deployment
• Integrated CHIRP, ClearVü, and SideVü scanning sonars
• Included foot pedal and wireless remote for quick control
• High-efficiency motor delivers reliable thrust with quiet operation

Specs:

• Shaft Length: 50 in.
• Voltage: 24 V or 36 V
• Water Rating (components above water): IPX7
• Manufacturer’s Warranty: 3-year, limited lifetime on shaft
• Max Thrust: 100 lbs. per ISO 13342 (high-efficiency propeller at 36V); 80 lbs. per ISO 13342 (high-efficiency propeller at 24Vdc)

Sonar:

• AutoPilot
• Anchor Lock
• Heading Hold
• Cruise Control
• Route Following
• ClearVü: 200 ft.
• SideVü: 455 kHz
• ClearVü: 800 kHz
• Transmit Power: 350 W
• ClearVu: Ultra-high-definition 800 kHz
• Maximum Depth CHIRP Sonar: 800 ft.
• Number of Pins: 12 (orange connector)
• Gesture Features (manual+, heading hold+, jog+)
• 455 kHz SideVü: 500 ft. to each side; 1000 ft. total
• SideVu: Ultra-high-definition 1200 kHz and 455 kHz
• Frequencies supported CHIRP sonar: High-wide CHIRP (150-240 kHz)
• Partial Frequencies Supported CHIRP Sonar: High-wide CHIRP (150-240 kHz)
• Ultra-High-Definition SideVü: 125 ft. to each side, 250 ft. total at a max depth of 30 ft.

Foot Pedal:

• Wireless Communication
• Waterproof Rating: IPX7
• AA Battery Life: 1 full season
• Adjustable Pedal Resistance
• Dimensions: 12″ L x 9″ W x 4.5″ H
• Power Installation: 12V wired or battery-powered (2 AA)

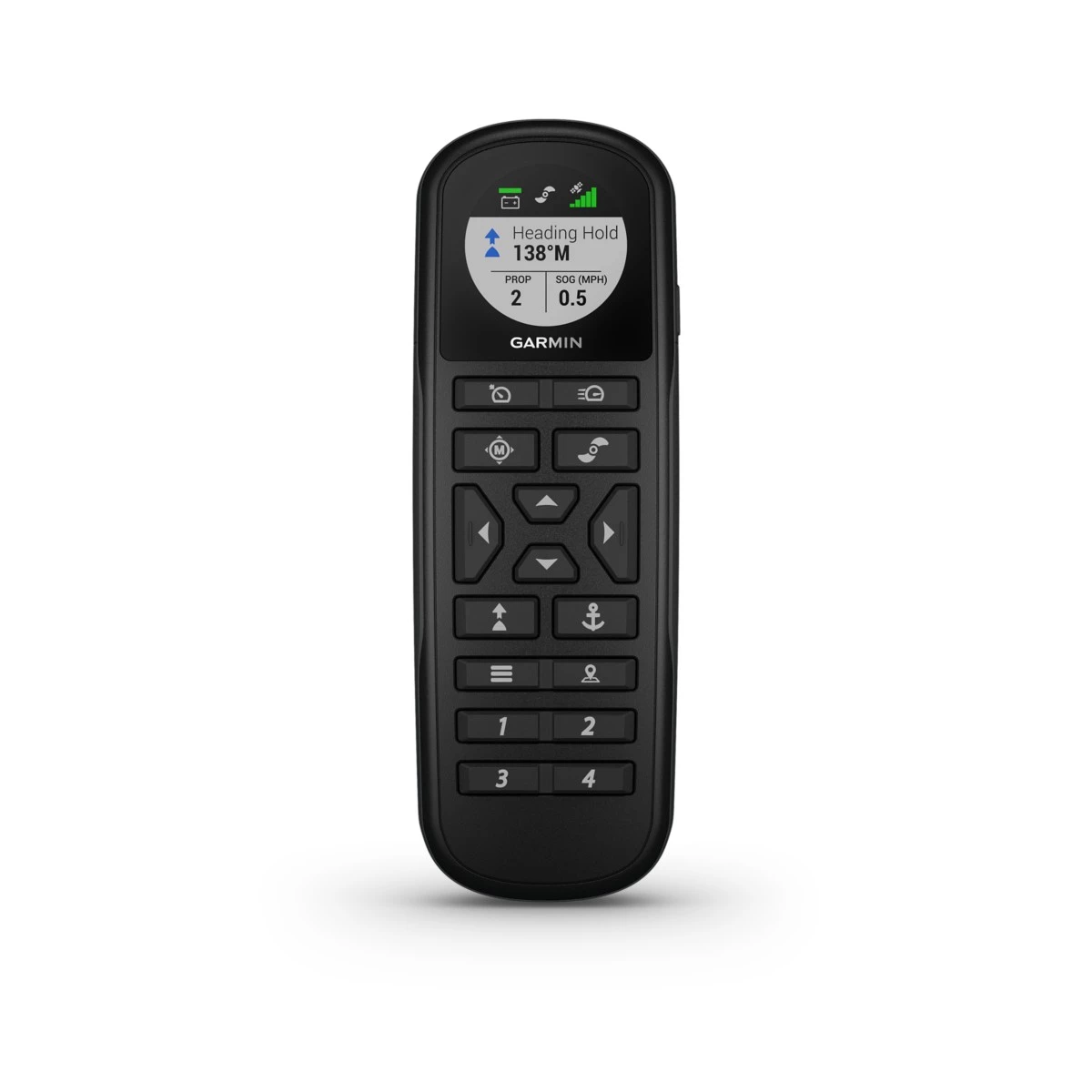

Remote:

• Waterproof Rating: IPX7
• Autopilot Feature Control
• Display Resolution: 240 x 240 pixels
• Display Size: 1.2″ (30.4 mm) diameter
• Chartplotter User-Programmable Keys
• Battery Life (Typical Use with Low Backlight): 43.2 weeks
• Display Type Color, Sunlight-Visible, Transflective Memory-in-Pixel (MIP)

In the Box:

• Remote
• Stabilizer
• Foot Pedal
• Trolling Motor
• Documentation
• High-Efficiency Propeller
• Assembly and Mounting Hardware
