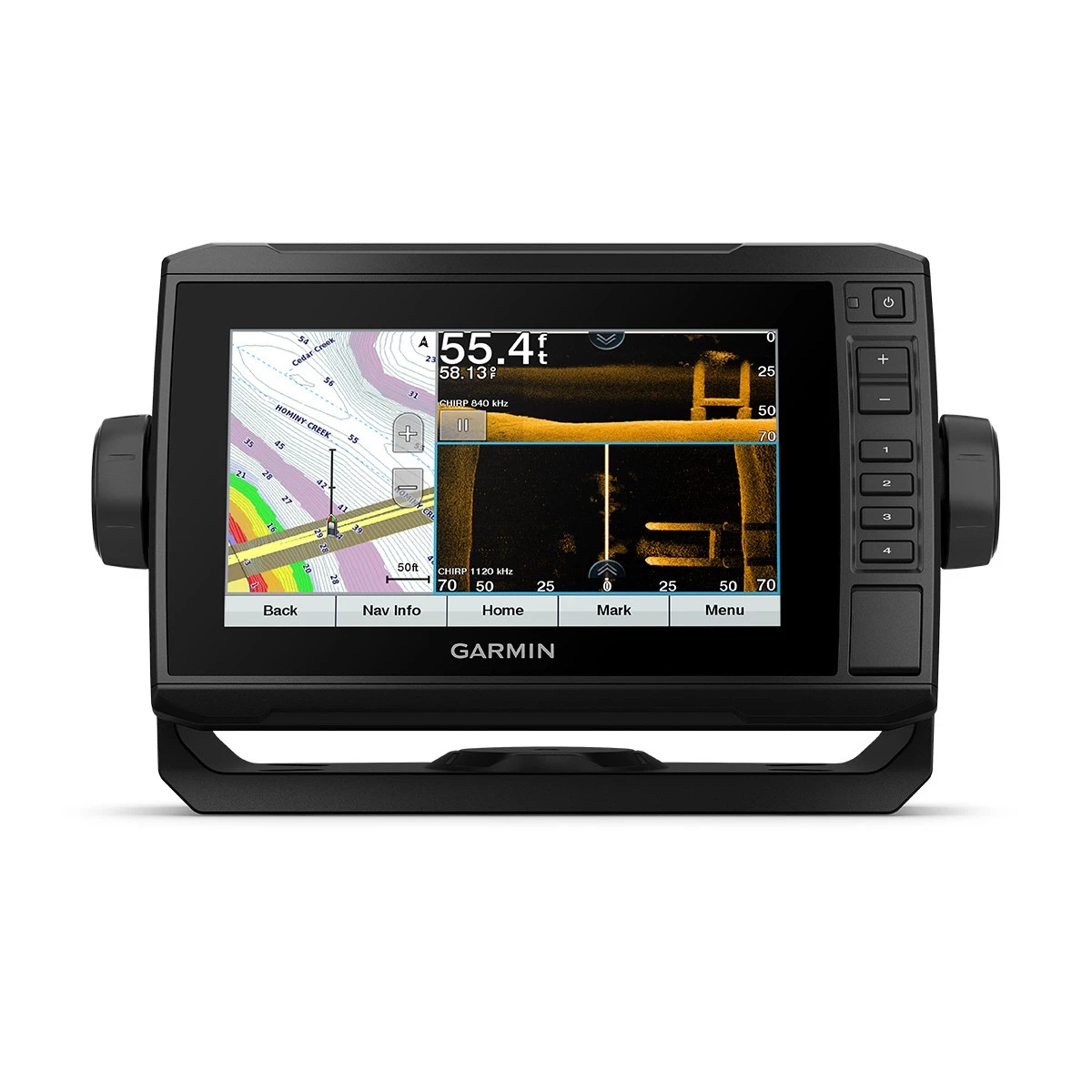

Garmin EchoMAP UHD 73sv Locator With GT56UHD-TM Transducer

The Garmin EchoMAP UHD 73sv Locator with GT56UHD-TM Transducer delivers clear readouts with high-definition sonar whether you’re fishing on a cloudy or sunny day. The Garmin Echomap UHD 73sv includes a GT56 transducer with traditional CHIRP sonar as well as Ultra High-Definition ClearVü and SideVü scanning sonars, giving you a clear picture of fish and structure. Preloaded with LakeVü g3 inland maps with integrated Navionics® data on more than 18,000 lakes, the Garmin Echomap UHD 73sv allows you to navigate any waters, while the quickdraw contours, networking capabilities, and other features will help you take your fishing to the next level. Spend less time fussing with your fish finder and more time catching fish with the Garmin ECHOMAP UHD 73sv Locator with GT56UHD-TM Transducer.

Features:

• Built-in 5Hz receiver and GPS
• Touchscreen for easy use with key assist buttons
• High-contrast vivid color pallet makes it easy to distinguish fish and structure
• Quickdraw contours allow you to create personalized fishing maps on-screen
• Includes GT56 transducer with CHIRP and UHD ClearVü and SideVü sonars
• Network Capabilities allow you to connect multiple ECHOMAP units and share data
• NMEA 2000® compatibility displays engine data, media, and more right on the screen
• Controls Garmin Force™ trolling motors via waypoint routing, custom tracks, and more
• Pairs with ActiveCaptain® mobile app for smart notifications, software updates, and more
• Preloaded with LakeVü g3 inland maps with integrated Navionics® data on more than 18,000 lakes
• Sonar support for a variety of Garmin transducers, including Panoptix LiveScope (LiveScope not included)

Specs:

• Model #: 010-02519-01
• Routes: 100
• Weight: 1.7 lbs.
• Waypoints: 5,000
• Water Rating: IPX7
• Display Type: WVGA, NP
• Power Consumption: 15W
• Mounting Options: Bail or flush
• Display Resolution: 400 x 800 pixels
• Display Size: 6.1″ x 3.4″; 7″ diagonal
• Physical Dimensions: 9.8″ x 5.5″ x 2.0″
• Preloaded Maps: LakeVu g3 inland maps
• Track Log: 50,000 points, 50 saved tracks
• Compatible Sensors: NMEA2000, NMEA0183
• Memory: 1 microSD card, 32 GB maximum size
• Garmin Marine Network™ Ports: 1 Panoptix port
• Built-in CHIRP sonar technology with ClearVu and SideVu
• Max depth: 2,300 ft @77 kHz freshwater, 1,100 ft @ 77 kHz saltwater

In the Box:

• Hardware
• Flush mount
• Documentation
• Protective cover
• Power/data cable
• GT56UHD-TM transducer
• Tilt/swivel mount with quick release cradle
• ECHOMAP UHD 73sv with LakeVü g3 for U.S.
